Demystifying Cpk in Plastic Injection Molding: How We Control Precision and Quality

 At CNMOULDING, we don’t just measure dimensions; we master process consistency. For high-precision plastic components, meeting the tolerances on a few sample parts is easy. But ensuring that millionth part is as perfect as the first requires Statistical Process Control (SPC) — specifically, Cpk (Process Capability Index).

Here is how we bridge the gap between mold design, injection production, and flawless quality using Cpk.

Cpk Quality Control in Injection Molding | China Precision Mold Maker

1. Why Cpk Matters Immensely in Injection Molding

Plastic injection molding is an inherently dynamic process. Molten resin behaves differently under subtle shifts in ambient temperature, material batch variations, and machine hydraulic pressures.

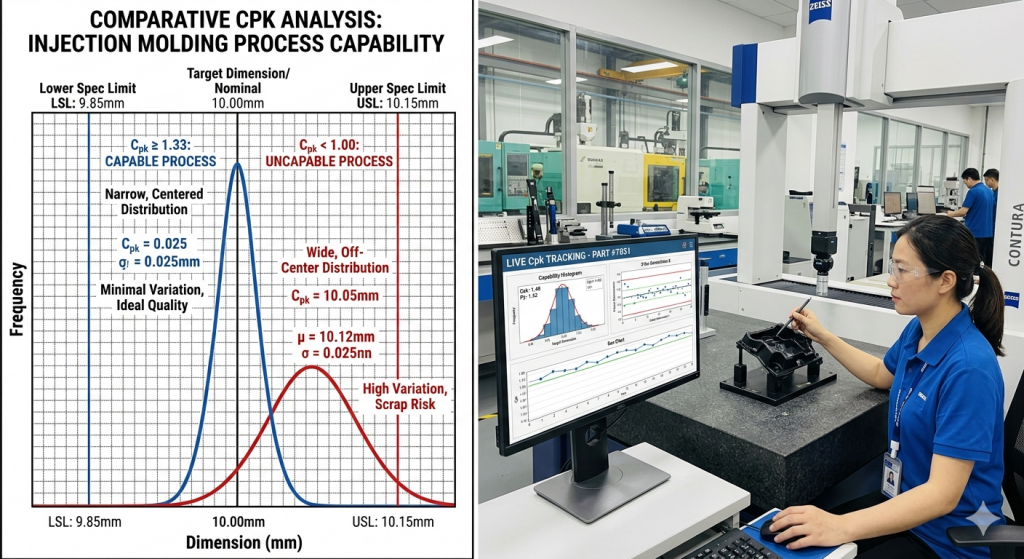

While Cp tells us if our injection process is capable of repeating itself (the spread), Cpk tells us if the parts are actually centered within your critical-to-quality (CTQ) specifications.

• Low Cpk (< 1.33): Means the molding process is unstable. Dimensions drift due to tool wear or poor molding parameters, leading to high scrap rates and assembly failures.
• High Cpk (≥ 1.33 or ≥ 1.67): Gives our customers statistical proof that our process is robust. It means your tight-tolerance parts (e.g., ±0.02mm) will consistently fit, saving you from incoming inspection headaches and costly downtime.

2. How We Apply Cpk to Control Quality: Our 4-Step Engineering Approach

We don’t just calculate Cpk at the end of a project to generate a report. We utilize Cpk throughout the entire product lifecycle to drive quality.

Step 1: Tooling Optimization (During Mold Trials / T1-T3)

Before mass production, we perform a short-run capability study. If a critical dimension yields a Cpk below 1.33, we do not force the injection machine to compromise. Instead:

• We analyze whether it’s a mold issue (e.g., steel needs to be safe, cavity imbalances) or a process issue.
• We perform steel modifications to “center” the dimension nominal, ensuring a solid foundation for a high Cpk.

Step 2: Scientific Molding & Parameter Window Setup

We use Scientific Molding principles to establish a robust process window (decoupling injection speed, pack, and hold). By identifying the exact parameters where part weight and dimensions are most stable, we inherently minimize the standard deviation ($\sigma$), which mathematically maximizes the Cpk value.

Step 3: In-Process SPC Monitoring

During high-volume production, our QA team takes regular samples (e.g., 5 parts every 2 hours) from the automated presses.

• Data is fed into our SPC software to track Cpk in real-time.
• If the Cpk trend starts heading downward—even if the parts are still within tolerance—our automated control charts flag an alert. This allows our technicians to adjust mold temperature or injection pressure before a single defective part is produced.

Step 4: Cavity-to-Cavity Consistency for Multi-Cavity Molds

For high-volume multi-cavity tools (e.g., 8, 16, or 32 cavities), a single overall Cpk is misleading. We calculate individual Cpk for each single cavity. This ensures balanced filling and guarantees that parts from Cavity #1 and Cavity #16 are identical in performance and fit.

Our Quality Guarantee

• Automotive/Medical Standard: We target a Cpk ≥ 1.67 for all critical-to-quality (CTQ) dimensions.
• Standard Industrial Standard: We guarantee a Cpk ≥ 1.33 for functional dimensions.
• Full Transparency: Every production batch is shipped with a comprehensive Dimensional Inspection Report and an SPC/Cpk Capability Study.

Partner with a China Mold Maker who speaks the language of data. [Contact Our Engineering Team Today] for a free DFM review and to discuss your precision molding requirements.

Medical Plastic Injection Molding



Medical Plastic Injection Molding: Precision Components & Cleanroom Manufacturing

At CNMOULDING, we deliver custom, regulatory-compliant medical plastic injection molding solutions for medical device OEMs, laboratory equipment suppliers, and healthcare facilities worldwide. Leveraging over two decades of specialized expertise, we combine advanced injection mold design with rigorous process control to manufacture tight-tolerance, sterile-ready plastic components that meet the stringent standards of the medical industry.

Our Technical Capabilities & Advanced Process Types

To support complex medical device structures and large-scale components, our Shanghai-based manufacturing facility is equipped with state-of-the-art machinery and specialized molding technologies:

High-Tonnage Injection Molding

We operate advanced injection molding presses that exert exceptionally high clamping forces (high tonnage). This capability allows us to achieve flawless material packing and dimensional stability when producing larger medical housings, equipment enclosures, and structural components without structural deformation.

Precision Insert Molding

Our insert molding process allows metal components or threaded inserts to be seamlessly embedded into the plastic part during a single molding cycle. This single-operation integration significantly improves the mechanical structure, enhances thread strength, and ensures the long-term structural integrity required for medical applications.

Advantages of Our Medical Grade Injection Molding

Plastic injection molding is the premier manufacturing choice for mass-produced medical devices, offering unparalleled repeatability and material versatility for components that require frequent sterilization. Partnering with us provides several distinct operational advantages:

• Exceptional Cost-Effectiveness: The automated, high-speed nature of our injection molding process makes it the most economical choice for volume production. When medical components are required in scalable batches, our tooling efficiency minimizes per-part costs.
• Micron-Level Precision & Tight Tolerances: In medical manufacturing, minor dimensional deviations can compromise device performance. Our skilled engineering team utilizes precise tool layouts to guarantee extremely high repeatability, ensuring part-to-part variance is virtually negligible.
• Medical-Grade Material Expertise: We process a wide range of biocompatible, medical-grade thermoplastics that exhibit excellent chemical resistance, high durability, and the ability to withstand autoclave, Gamma, or EtO sterilization processes.

Why Choose CNMOULDING for Medical Applications?

20 Years of Proven Industry Reputation

We have been at the forefront of custom plastic injection molding since 1997. Our proven capability to produce defect-free, high-quality molded plastic components has earned us a premium reputation across the global supply chain. We establish long-term partnerships with clients worldwide, reliably handling both high-mix low-volume (small batches) and large-scale production runs.

Controlled Cleanroom Production & ISO 9001:2015 Quality Standards

Medical components demand a contamination-free environment. CNMOULDING operates dedicated clean production environments to eliminate airborne particulates and processing pollutants. Our facility is strictly certified under the ISO 9001:2015 Quality Management System, enforcing rigid operating standards across molding, secondary assembly, and medical packaging.

Fast Tooling & Accelerated Lead Times

By integrating our in-house mold processing center with our injection molding production base, we streamline the entire lifecycle from initial prototype to final part. Equipped with imported CNC machining centers and dozens of high-specification molding machines, we optimize production efficiency to guarantee fast, on-time delivery.

End-to-End Engineering Service & Seamless Cooperation

• Tailored Customization: Full support for custom engineering modifications, scientific molding trials, and initial sample validation phases.
• DFM & Technical Guidance: We provide comprehensive Design for Manufacturability (DFM) reviews and operational guidance for component installation and use.
• Dedicated After-Sales Support: A transparent, responsive engineering team ensures a worry-free cooperation experience from tool kickoff to post-delivery.

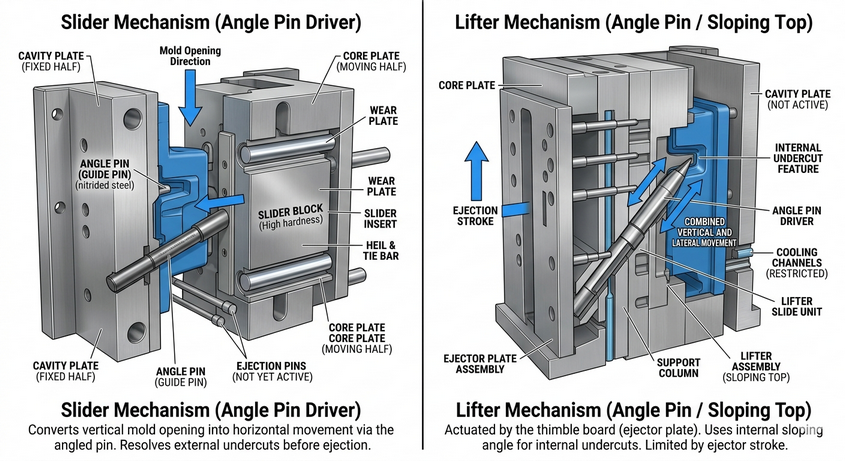

Injection Mold Design Guide: Slider Mechanism vs. Lifter for Undercut Demolding



In professional injection mold design, dealing with complex part geometries—specifically undercuts—is one of the most critical challenges for mold makers. To achieve successful ejection without damaging the plastic part, two primary mechanisms are deployed: the Slider Mechanism and the Lifter (also commercially known as the Angle Pin or Sloping Top).

While both mechanisms convert the vertical press motion into a lateral movement to release undercuts, their mechanical drivers, applications, and design constraints differ significantly.

Below is a technical breakdown of the sliders and lifters to help you optimize your next tool design.

1. The Slider Mechanism: External Undercut Resolution

Core Principle & Kinematics

The slider mechanism is engineered to resolve external undercuts on a molded part. Mechanically, it utilizes the relative movement of the mold opening and closing sequence. As the mold splits along the main parting line, an angled guide pin (cam pin) mounted on the stationary side (cavity/female mold) forces the slider block on the moving side (core/male mold) to travel horizontally, perpendicular to the mold-opening direction.

• Sequence of Operation: The lateral motion of the slider must be fully completed before the ejection system pushes the product out of the core.
• Material & Durability: Because sliders endure high cyclic friction and clamping forces, the slider body and its wear plates must possess high hardness and wear resistance (typically nitrided or made of friction-resistant alloys like graphite-impregnated bronze). The molding surface (cavity/core insert) on the slider must match the steel grade and hardness level of the main cavity/core inserts to ensure uniform part finish.

2. The Lifter / Angle Pin Mechanism: Internal Undercut Resolution

Core Principle & Kinematics

The lifter (often referred to as an angle pin mechanism or sloping roof in alternative terminology) is primarily designed to release internal undercuts inside the product body where a standard slider cannot reach.

Unlike the slider, which is actuated by the mold-opening stroke, the driving force of a lifter comes directly from the ejection system (thimble board/ejector plate).

• Sequence of Operation: When the ejector plate moves forward, the lifter rises vertically along with the product. Because the lifter is installed at a specific design angle relative to the ejector plate, this vertical lift simultaneously generates a lateral stroke, pulling the molding tip away from the internal undercut.
• Design Constraint: The lateral stroke of a lifter is strictly dependent on, and limited by, the total ejection stroke of the mold. Precise calculation of the lifter angle and guiding mechanical clearance is mandatory to prevent binding.

3. Technical Comparison: Why Sliders are Generally Preferred Over Lifters

When an undercut can technically be resolved by either a slider or a lifter, experienced engineers generally prioritize the Slider Mechanism. Sliders offer distinct manufacturing and operational advantages:

Feature / Constraint	Slider Mechanism	Lifter (Angle Pin / Sloping Top)
Machining & Tolerances	Easier to CNC machine, grind, and control dimensional tolerances.	High-precision EDM and angled pocket machining required; harder to fit.
Component Interference	Low interference risk. Located mostly on the periphery of the mold core.	High risk of interfering with support columns, ejector pins, and other lifters.
Cooling Circuit Design	Substantial space allows for dedicated, highly efficient cooling channels.	Restricted space significantly limits cooling layout, affecting cycle times.
Maintenance & Tool Assembly	Highly convenient for bench assembly, adjustment, and fast removal.	Complex assembly; requiring teardown of the ejector system for maintenance.

Conclusion

In robust injection mold design, lifters are typically reserved for internal features or instances where mold space constraints make a slider mechanism unfeasible.

As a leading China mold maker, CNMOULDING optimizes every tool layout to guarantee long-term production stability. By minimizing potential component interference and maximizing cooling efficiency in our slider and lifter designs, we ensure your injection molds deliver fast cycle times and extended tool life.
